Connections
S ' up

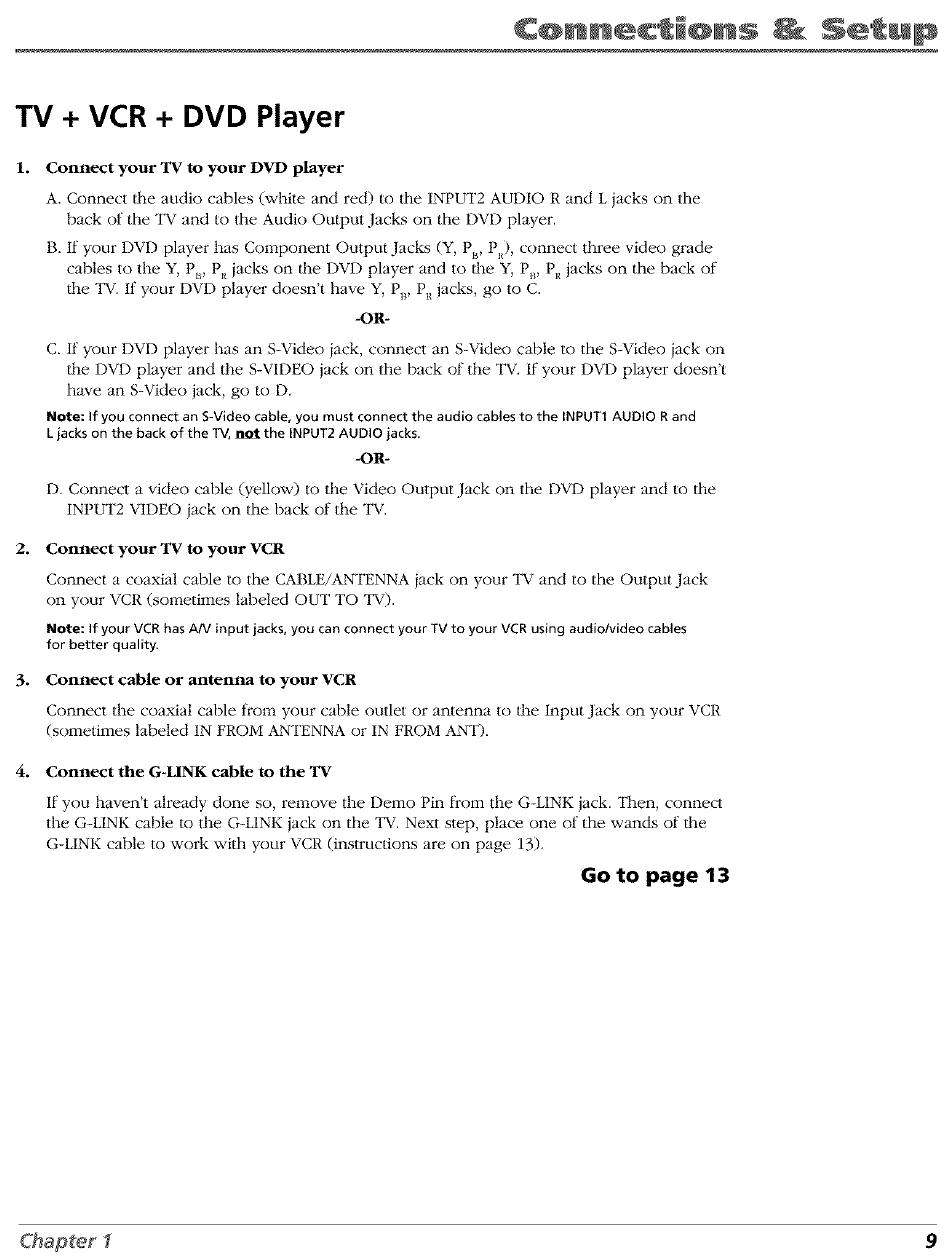

TV + VCR + DVD Player
1.
Connect
your
TV to your
DVD player
A. Connect the audio cables (while and red) to the INPUT2 AUDIO R and L jacks on the
back of the TV and to the Audio Output Jacks on the DVD player.
B. If your DVD player has Component
Output Jacks (Y, P,_, PR), connect three video grade
cables to the Y, P_, PR iacks on the DVD player and to the Y, Pm Pu jacks on the back of
the "IV. If your DVD player doesn't
have Y, Pm Pu jacks, go to C.
-OR-
C. If your DVD player has an S-Video iack, connect an S-Video cable to the S-Video iack on
the DVD player and the S-VIDEO jack on the back of the TV. If your DVD player doesn't
have an S-Video jack, go to D.
Note: If you connect
an S-Video cable, you must connect the audio cables to the INPUTI AUDIO R and
L iacks on the back of the TV, _
the INPUT2 AUDIO jacks,
-OR-
D. Connect
a video
cable
(yellow)
to the Video
Output
Jack
on the DVD player
and to the
INPUT2
VIDEO iack on the back of the TV.
2.
Connect
your
TV to your
VCR
Connect
a coaxial
cable
to the CABLE/ANTENNA
iack on your "IV and to the Output
Jack
on your VCR (sometimes
labeled
OUT TO "IV).
Note: If your VCR has AN input iacks, you can connect your TV to your VCR using audio/video cables
for better quality,
3.
Connect
cable or antenna
to your VCR
Connect the coaxial cable from your cable outlet or antenna
to the Input Jack on your VCR
(sometimes
labeled 1N FROM ANTENNA or IN FROM ANT).
4.
Connect
the G-LINK cable to the TV
If you haven't already done so, remove the Demo Pin from the G-LINK jack. Then, connect
the G-LINK cable to the G-LINK jack on the "IV. Next step, place one of the wands of the
G-LINK cable to work wilh your VCR (instructions
are on page 13).
Go to page
13
9
